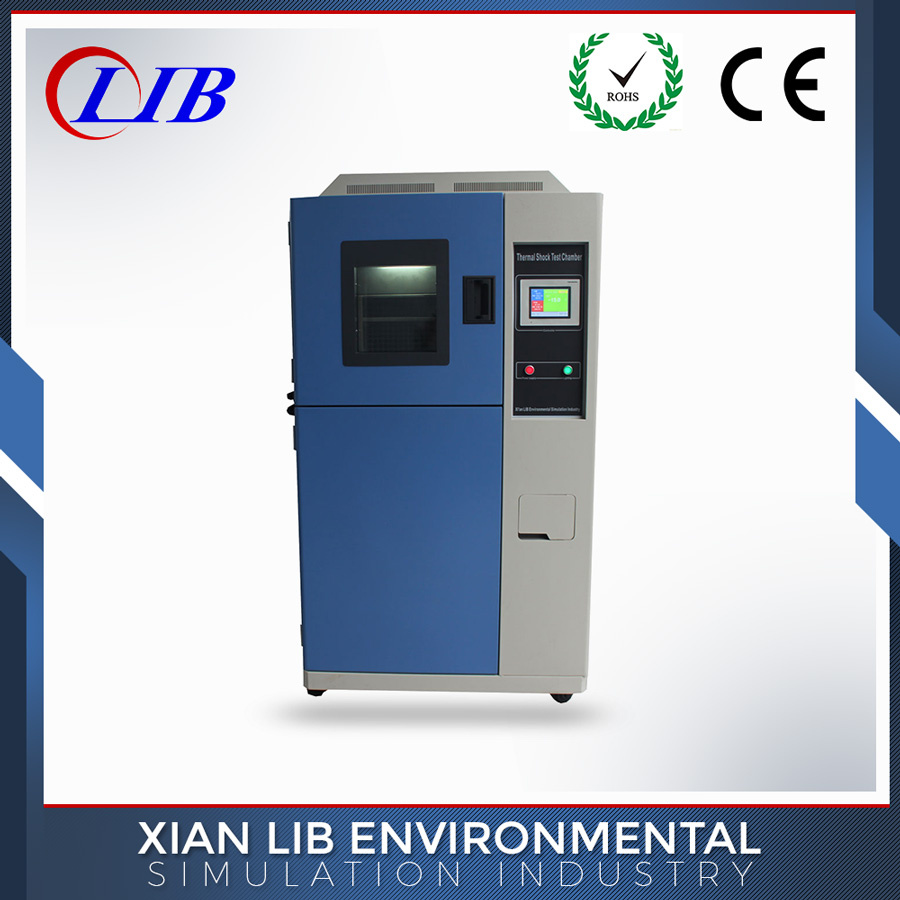

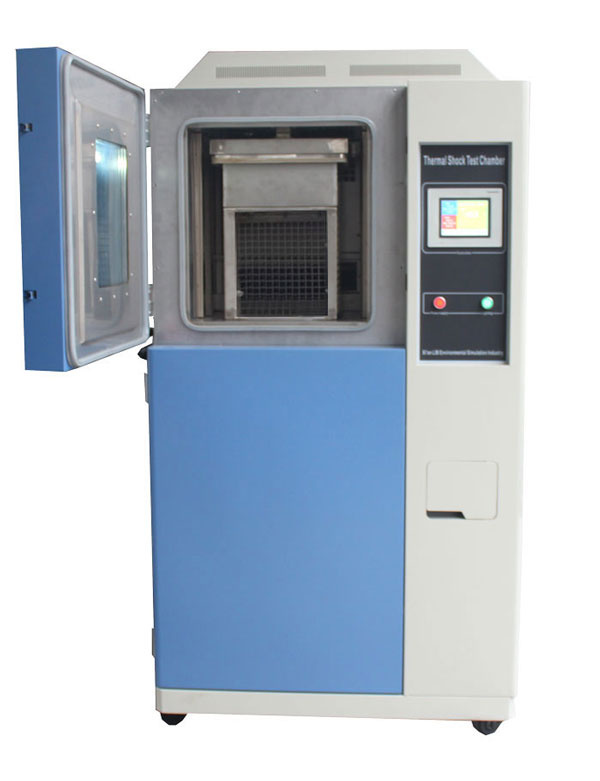

3 Years Guarantee Thermal Shock Test Chamber Ts-162 with Nichrome Electonic Heating System
| Price: |
US $ 4500-29500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TS-162 |
| Description: |
Impact Testing Machine |
| Overall Size(mm): |
1560* 870 * 1545 |
| Temperature (Degree): |
-20 to +200 /-40 to +200/-60 to +200 |
| Sample Zone Load: |
20kg |
| Cooling System: |
French Tecumseh Compressor |
| Temperature Sensor: |
PT-100 a Class |
| Power Supply: |
380V, 50 Hz 10% +/- Three-Phase Five Little Syste |
Product Description
1. Product Name:Thermal shock test chamber TS-162 with Nichrome electonic heating system2. Technical Parameters: | Model | TS-162 | TS-340 | TS-500 | TS-1000 |
| Internal dimensions (mm) | 450*450*450 | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Overall dimensions (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 |
| Sample zone dimensions(mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 |
| Sample zone load | 20kg | 30kg | 50kg | 60kg |
| Temperature range | A: -20ºC ~ +200ºC B: -40ºC ~ +200ºC C: -60ºC ~ +200ºC |
| Temperature fluctuation | ≤±2ºC for high temperature and low temperature |
| Temperature fluctuation | ≤±0.5ºC (under constant temperature) |
3. Key Points:

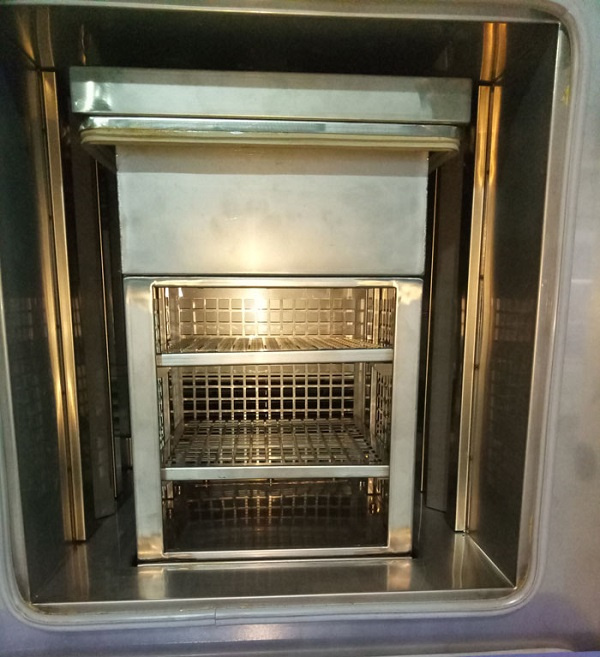

Test area:
Test area is made of stainless-steel.
Stainless steel basket.
Control Panel:
Programmable color display touch screen controller
Languages of Controller is English,
Setting mode: touching type
Program: 100 groups in 999 sections
R-485 interface
PC Link with software
Cooling system:
Cooling unit is French TECUMSEH compressor.
Environment friendly Refrigerant R404A & R23
Double-Stage refrigerating unit
Sensors:
Temperature sensor PT-100 A class
Resolution: temperature: ± 0.01 ºC
Safety protection:
Independent over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Over-current circuit breaker
Earth leakage protection and so on
Power supply and Wiring:
380V, 50 Hz 10% +/-
Three-phase five little system
4. Product video:
TS-162 Thermal Shock Evironment Chamber Video: http://v.youku.com/v_show/id_XNzU0NzIwNDEy.html
(Please copy it to your browser to open it)
5. Applications:
Test equipments are widely used in military industry, engineering controls project, testing institutes, universities, laboratory ,aerospace, electronics, instrumentation, home appliances, auto parts, research and quality inspection Area.
6. Our Services:Pre-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory. |
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning. |
7. About US:
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.
LIB adhered to "Quality", "Service", and "Trust".
LIB main products are
Temperature and humidity climatic test chamber
Thermal shock chamber
Salt spray test chamber & CCT
IP test chambers
Weathering test chambers
Ozone test chamber
Sulfur dioxide corrosion test chamber
Drying Oven
Walk-in chamber
LIB Industry undertakes standard and customized climatic chamber projects, we involve with designing, manufacturing, installation, commissioning, service, mantinance and calibration, pls contact us, we will provide the best solution to you.
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. Our main products are Temperature and humidity climatic test chamber, Thermal shock chamber, Salt spray test chamber & CCT, Dust and water ingress test chambers, Weathering test chambers, Ozone test chamber, Sulfur dioxide corrosion test chamber, Drying Overs, Walk-in chamber. etc
LIB INDUSTRY undertakes standard and customized climatic chamber projects. The company is involved in all stages including designing, manufacturing, installation, commissioning, service, maintenance and calibration. And can provide effective solutions to any environmental test problem based on years of experience.
We provide various climatic chambers and service to accredited laboratories, manufacturing industry, institute, university, companies and other partners. And gottestimonials from many of our esteemed companies. And got testimonials from many of our customers. Even some customers got many order through pruchasing and using our test chambers. Many customers use our climatic test chambers to inspect their products quality and characteristics. Some kinds of clients to resell our climatic chambers to get a good market.
Our company pre-sales and after-sales service as following
Re-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
Our Packages use Export Standard Wooden Box, which can be used for Sea, Air, Railway, Truck transportation.
LIB climatic test chamber have been certified by CE, RoHS, ISO2001 compliance, and CSA certificate.
