24V 33mm DC Gear Motor for Money Detector

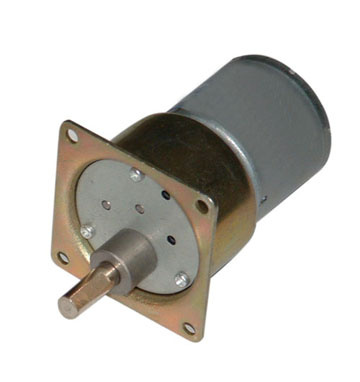

Name: 24V 33mm DC Gear Motor for Money Detector
Brand: all-electronics-online.com
SKU: 773507805
Availability: InStock
Rating: 4.9 (95 reviews)

Price:	US $ 9.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW-37G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Moto Dia:	33mm
Motor Length:	22.7mm
Motor Weight:	0.16kg
Motor Delivery Time:	15-25days
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

DC GEAR MOTOR
Main voltage: 3V, 6V, 9V, 12V, 24V
Typical Applications: Auto shutter, Money detector, Binding machine, Automatic TV rack, Packing bank note machine, Limelight , Tissuse machine,Office equipment, Household appliances, Automatic actuator.
Gearbox Data:

Number of stages	2,3 stages reduction	4,5stages reduction	6,7stages reduction
Reduction ratio	6,10; 20,30	60,90;120,180,270	489,540,810;1620,2430
Gearbox length L mm	22.5	25 27	29
Max .Running torque	2Kgf.cm	10Kgf.cm	10Kgf.cm
Max.Gear breaking torque	8kgf.cm	30kgf.cm	30kgf.cm
Max.Gearing efficiency	81%; 73%	65%; 59%	53%;48%

Motor Data:

Type	Rated Votage V	No load		Load Torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	rpm	mA	Rpm	gf.cm	W	gf.cm	mA
LW37-G1234	12	≤40	3400	≤180	2500	40	1.0	160	720
LW37-G1245	12	≤50	4500	≤350	3300	60	2.0	210	1400
LW37-G1260	12	≤70	6000	≤720	4500	80	3.6	300	2800
LW37-G2430	24	≤15	3000	≤80	2200	40	0.9	140	320
LW37-G2445	24	≤25	4500	≤180	3300	60	2.0	210	730
LW37-G2467	24	≤45	6700	≤360	4500	80	3.6	300	1400

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
