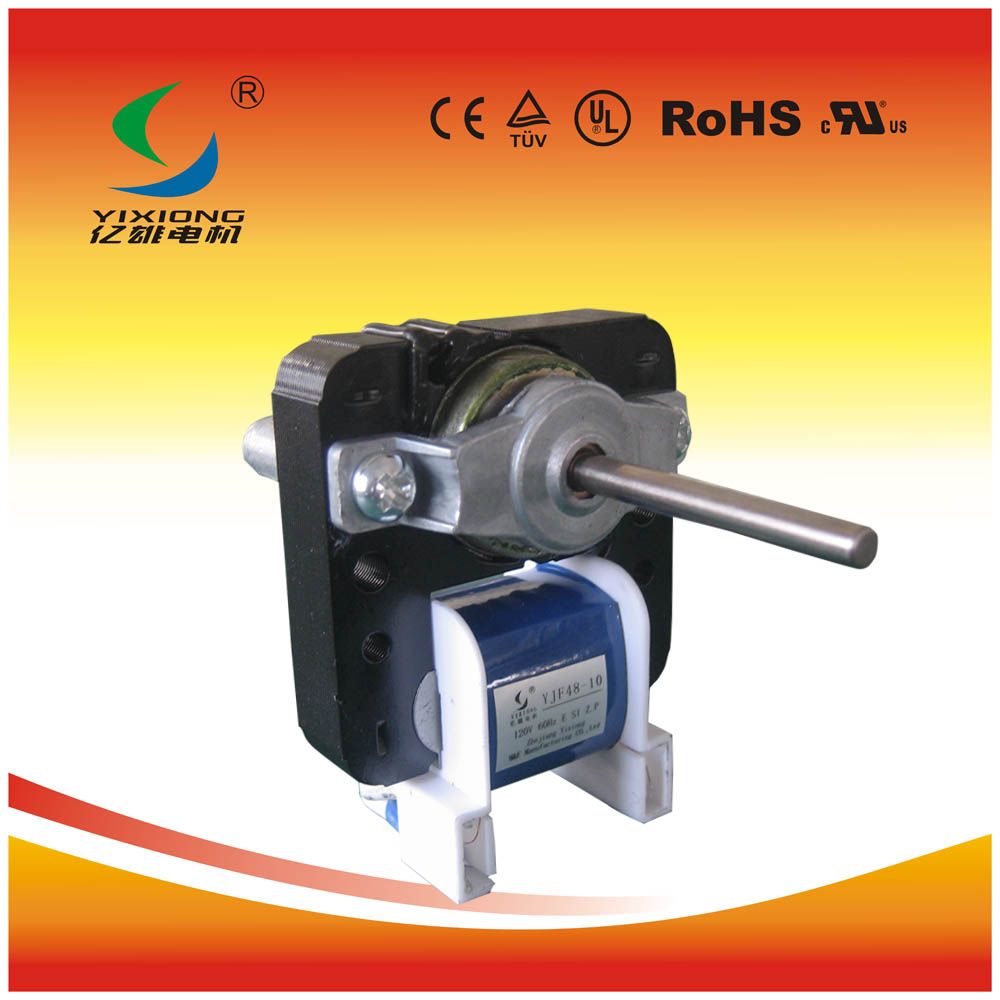

230V Yj48 Series Shaded Pole Motor

230V Yj48 Series Shaded Pole Motor
Price: US $ 1-6/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: YJ48
Usage: for Manufacture
Cooling Method: Direct Cooling
Motor Type: Shaded Pole Motor
Voltage: 100-240V AC
Frequency: 50/60Hz
Power: 25-90W
Insulation Class: E/B/F/H
Noise: <=45dB(a)
Life: 3000 Hours Min
Product Size: Yj48
Application: Household Appliances
Operating Speed: Constant Speed
Number Of Stator: Single-Phase
Rotor Structure: Winding Type
Casing Protection: Open Type
Species: Single Phase
Starting Mode: Induction Start
Certification: Ce, UL
Brand: Yixiong

Product Description


Fan Motor Discription :
Model: YJ6110, YJ6113, YJ6116, YJ6120, YJ6130, YJ6140
Size: 61x61x10mm, 61x61x13mm, 61x61x16mm, 61x61x20mm, 61x61x30mm, 61x61x40mm,
Shaft Length: As your request
Shaft Diameter: 5mm, 6mm

ON LOADING:
Voltage/Frequency: 220V~240V/50Hz 100V~120V/60Hz
Spreed: 2000~3000rpm
Current: 0.12A~0.50A
Input power: 12w~40w
Exotherm: ≤ 90k
Insulation Class: E


1. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
2. This AC motor can be designed and produced according to your request.
ModelVoltageFrequencyCurrentPowerSpeedClass
YJ61-10110/220 VAC50-60 Hz 0.18 A 13.0 W1850  RPM E/B/F
YJ61-13110/220 VAC50-60 Hz 0.20 A 16.0 W1800 RPME/B/F
YJ61-16110/220 VAC50-60 Hz 0.24 A 25.0 W 2500 RPME/B/F
YJ61-20110/220 VAC50-60 Hz 0.28 A 27.0 W 2400 RPME/B/F
YJ61-25110/220 VAC50-60 Hz 0.31 A 30.0 W 2480 RPME/B/F
YJ61-30110/220 VAC50-60 Hz 0.35 A 32.0 W 2450 RPME /B/F
YJ61-40110/220 VAC50-60 Hz 0.43 A 36.0W 2400 RPME/B/F
