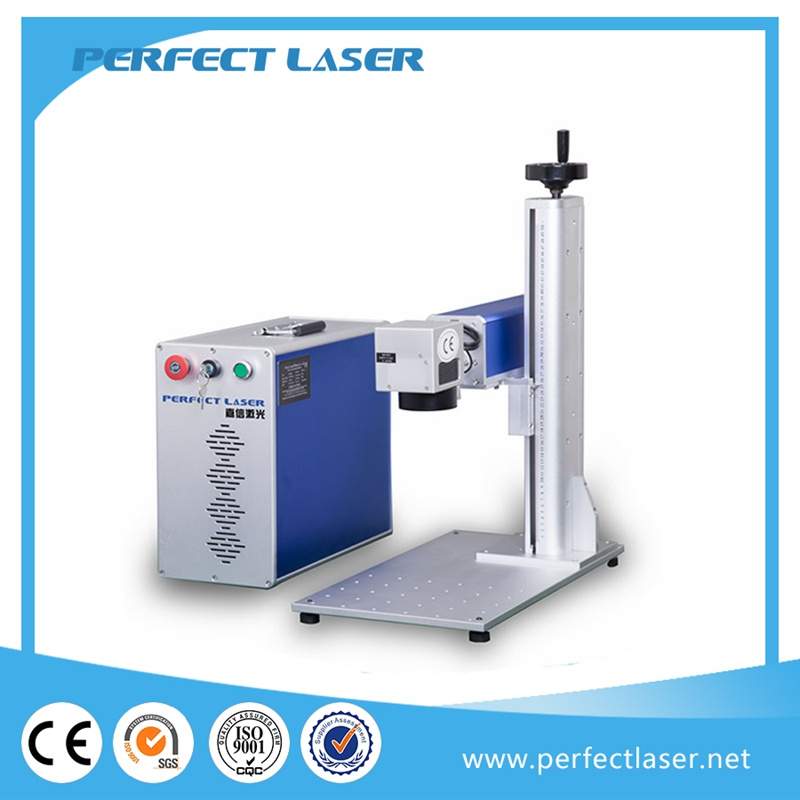

20W 30W Plastic Fiber Laser Marking Machine with Ce
Price: |
US $ 4200/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
PEDB-400B |
Payment Method: |
T/T in Advance |
Production Time: |
7 Working Days After Deposit in Our Account |
Positioning Switch: |
Japan |
Laser Diode Module: |
USA Imported Brand |
Product Description

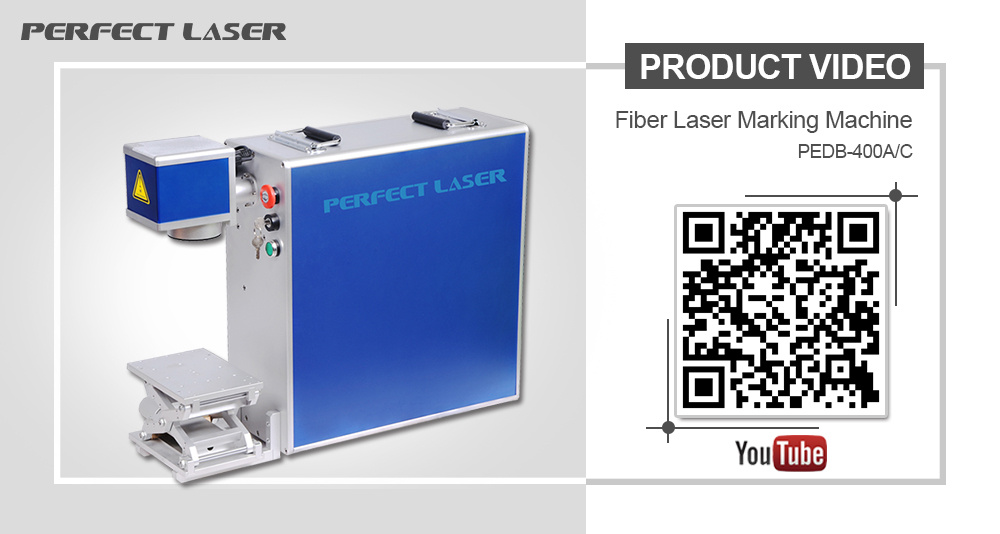

10W 20W 30W Plastic Buttons Fiber Laser Marking Machine

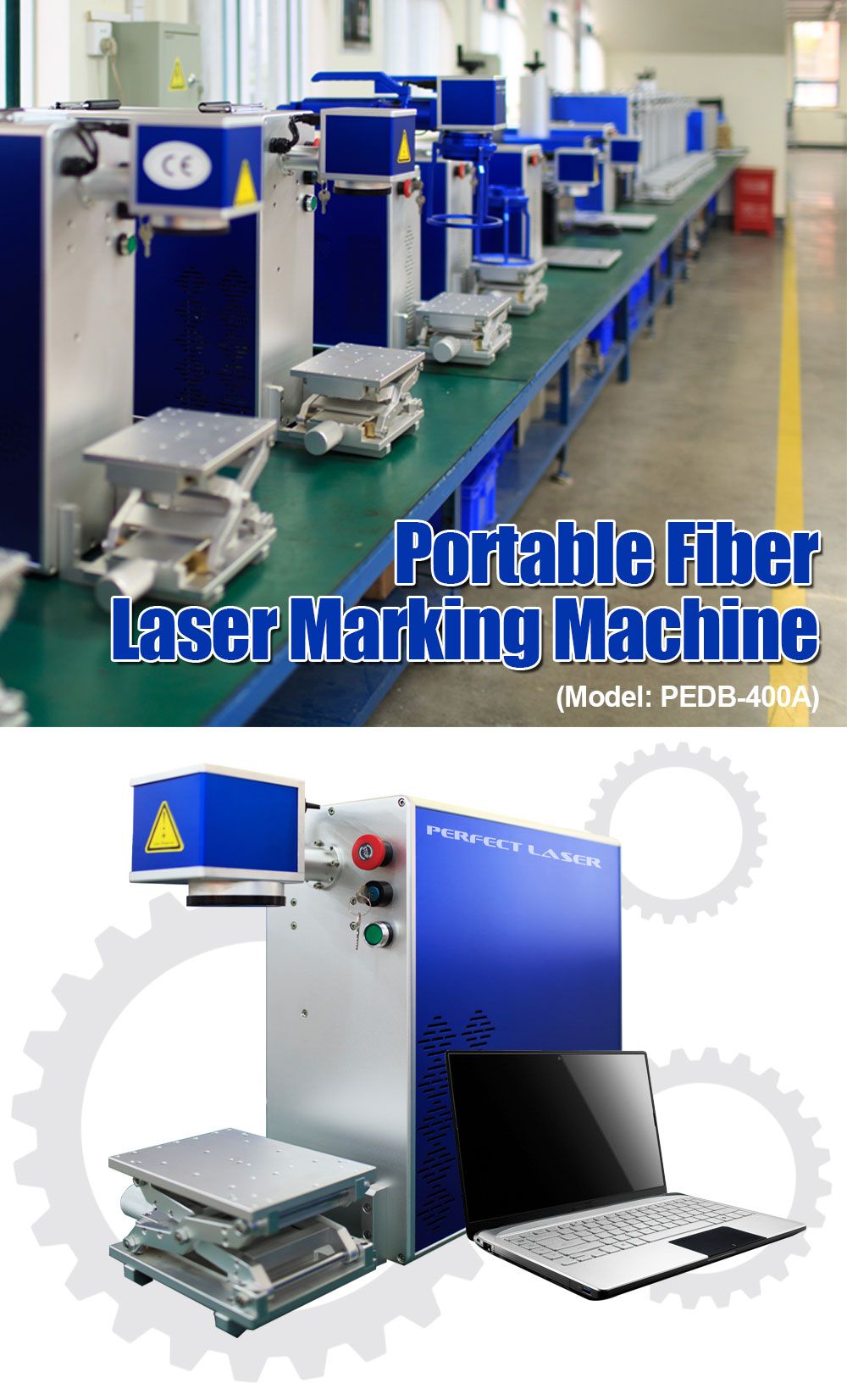

(Portable Fiber Laser Marking Machine Model: PEDB-400A)
Contact: Daisy
![](/proimages/44f3j00mpDtvZdsLEbc/20w-30w-plastic-fiber-laser-marking-machine-with-ce.jpg)
Advantages
leather glass bottle expiration date printing machine adopts international most advanced technology
and the laser source is fiber with Germany IPG technology, lifetime can reach 100,000 hours without any consumables and maintenance. This is the best choice for the customers
who have special requirements to the smallest & finest laser beam and character.
![](/proimages/44f3j00ApLEvNwykToq/20w-30w-plastic-fiber-laser-marking-machine-with-ce.jpg)
1. High Precision: Re-position precision is 0.002mm
2. High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
3. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
4. High Reliability: MTBF>100,000 hours
5. Energy Saving: The efficiency of optic-electrical converting is up to 70%
![](/proimages/44f3j00wpPtvmJcLQkb/20w-30w-plastic-fiber-laser-marking-machine-with-ce.jpg)
Product Description
Technical Parameters: Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
Type | Portable | Desktop | Colorful | Floor Stand |
PC includes or not | Not includes PC | includes PC |
Laser Source |
IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
Mode of operation | Pulsed |
Polarization: | random |
Nominal average output power | 10w/20w |
Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
Emission Bandwidth (FWHM) | <10 nm |
Long-term average power instability | <5% |
Pulse width, (FWHM) | 100 ns |
Laser switching ON time | 180 μsec |
Laser switching OFF time | 180 μsec |
Pulse Repetition Rate* kHz | 20-80 kHz |
Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
Typical beam quality, M2 | <1.8 |
Output fiber delivery length | 3m |
Operating voltage: | 220V |
Max. Power consumption: | 600W |
Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 150 kgs |
Laser system |
Scanning Speed: | 0-7000mm/s |
Marking Speed: | 0-5000mm/s |
Marking size: | 110mm×110mm (F-theta 160) |
Spot size: | ≤ 40 micron (F-theta 160) |
Cooling unit: | Air cooled |
Pilot laser: | 650nm diode laser, visible red light for marking guide |
Continuous working time: | ≥16h |
Humidity: | 45~85% (no condensation) |
Operating temperature: | 0~40°C |
Control units | CT-MARK (English Version) |
Remark:
1> PEDB-400A / B / C type, it is very compact type, industry PC, Mouse and Monitor are not included in
the quotation. Customer can use your own computer or laptop to control it.
2> PEDB-400D Floor type's quotation includes industrial PC / Mouse / Monitor.
![](/proimages/44f3j00tuLQvTdkvEoe/20w-30w-plastic-fiber-laser-marking-machine-with-ce.jpg)
Application Field and Material: Electronic Components | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
Apparatus And Meter | Panel signs, precision equipment ,etc., |
Instrument | Panel signs nameplates, precision equipment ,etc., |
Hardware Tools | Knives, tools, measuring tool, cutting tool, etc., |
Automobile Parts | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
Mechanical Parts | Bearings, gears, standard parts, motors, etc., |
Daily Necessities | Handicrafts, zipper, key holder, sanitary ware, etc., |
Jewelry Rings | Jewelry, gold, silver,etc. |
Food,drinking packing | Plastic packings,etc. |
![](/proimages/44f3j00EpPaBYmUItkM/20w-30w-plastic-fiber-laser-marking-machine-with-ce.jpg)

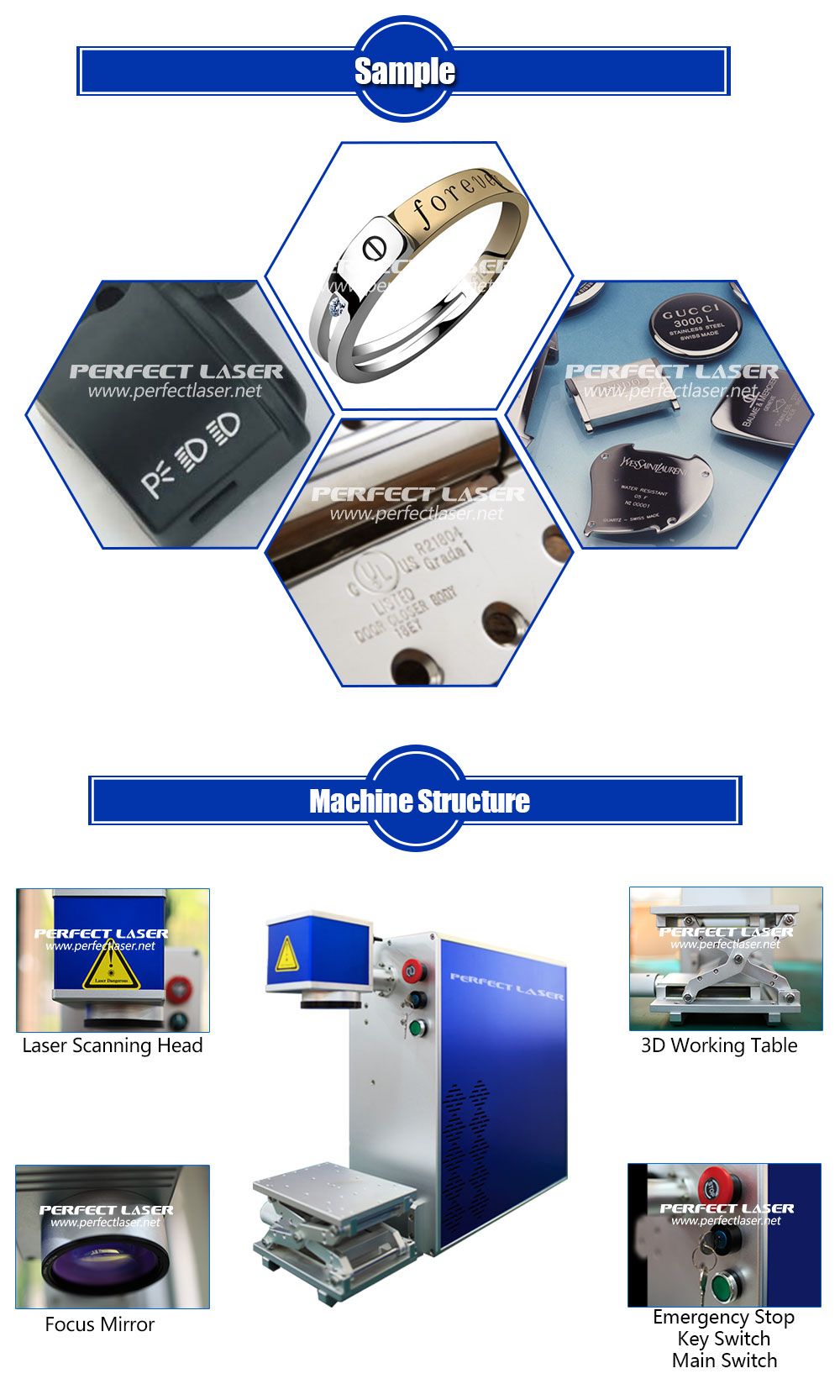

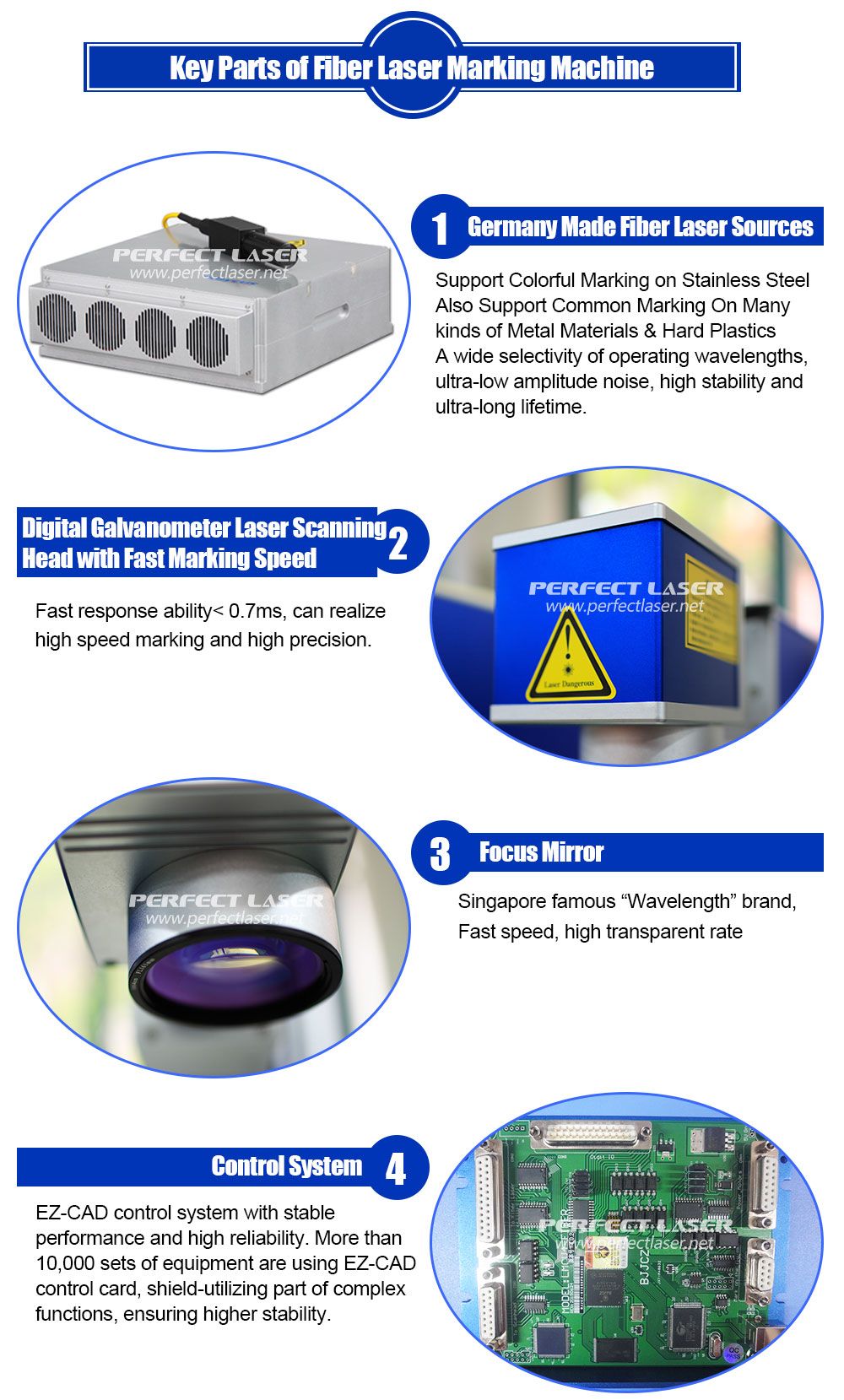

1. Germany Made Fiber Laser Sources: A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime
2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed: Fast Response Ability <0.7ms, High Speed Marking and High Precision
3. Focus Mirror: Singapore famous "Wavelength" brand, Fast speed, high transparent rate
4. Control System: EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.
5. Red Light Pointer: Adopt red light pointer to show the laser path since laser beam is in-visible.
6. 3D Working Table: Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
7. Laser Power Supply: Adopt Taiwan Famous brand, Stable performance, long life span.
8. Portable Handle: Easy to held the machine by hand.
9. Emergency Stop: Press it when meets error, the machine will stop working immediately to avoid losses.
10. Key Switch: Using key swith to control the power of the machine.
11. Main Switch: It is designed as a easy button, safe and efficient.
Optional:
1. Rotary Fixture: Can engraving for cylinder work-pieces.
2. Software: Adopt latest V2.10 version laser marking software, with more than 10 years development, it containing deep technical characteristic.
![](/proimages/44f3j00tpLEeudzqaqv/20w-30w-plastic-fiber-laser-marking-machine-with-ce.jpg)
FAQ
Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.Contact us
