2013 Hot! Wireless Telephone PSTN Line Security Alarm System, with FCC, CE Certificates

Prod Model:	YL-007TF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

2013 hot! Wireless telephone electronic line security alarm system, FCC, CE certificates

Three years warranty

Wireless telephone line security alarm system
1. TFT color screen with English menu
2.4 wired and 99 wireless defense zone

. Features
Model No.: YL-007TF
Working Principle: Electronic Security Equipment
Application: Home security
Sensor Type: Electric Alarm
Working Mode: Active
Signal Transmission: Wireless Alarm
Type: Anti-Theft Alarm
Usage: Auto
Export Markets: Global
Additional Info.
Trademark: Wolf Guard
Packing: Gift Box
Standard: 118*84*29mm
Origin: Shen Zhen/China
Production Capacity: 98000PCS/Month
2013 hot! Wireless telephone electronic line security alarm system, FCC, CE certificates
Product Description

Host size: 170*112*30mm
Gift box size: 320*263*63mm G. W.: 984G

[Function Instruction]

TFTColor Screen with English menu and voice prompt, simple operation.
99 defense zones, each zone has 8 defense types available for choice: Common defense zone, stay defense zone, intelligent defense zone, emergency defense zone, close defense zone, Chime defense zone, welcome defense zone, help senior defense zone. Each defense zone can arm/ disarm independently.
Four groups of timing arm/ disarm function; Each timing can be set in different zones.
Alarm call is prior to normal call even when the phone is busy.
10 seconds automatic message recording. With built-in human voice prompt, users will know the alarm position and defense zone No. When remotely receiving the alarm.
Remote listening in different places and remotely arm and disarm by phone.
Simple and fast to add wireless accessories. Alarm panel is compatible with 2262 coding format and millions of code and can add up to 150 remote controllers and 150 detectors.
Adopt High Precision Clock IC to ensure that the previous time will not lose when power is off.
Black Box function: Alarm panel automatically records 72 pieces of arm, disarm and 102 pieces of recent alarm events.
Compatible with internationally accepted protocol of alarm receiving center: Ademco Contact ID alarm communication protocol. (this function is optional. Please contact us if needed. )

Technical Parameters

Power Supply: DC9V-12V(Built-in rechargeable battery)

Static Current: <20mA

Alarm Current: <450mA

Wireless frequency: 433MHz± 0.5MHz

PT2262/1.5-4.7M, EV1527/300K

Wireless receiving flexibility: 5mV/m

Wireless Alarm Siren: 110dB

Working Temperature: 0° C~+40° C

Humidity: ≤ 90% (no fog)

Wireless detector: Maximum 150PCS

SUITABLE OCCASIONS:
Villa, home, house, residential, shop, school, bank, small&middle supermarket, company, the factory floor, garage, financial room, finacial sales, machine room, base station, important unattended monitored place intrusion and remote control alarm

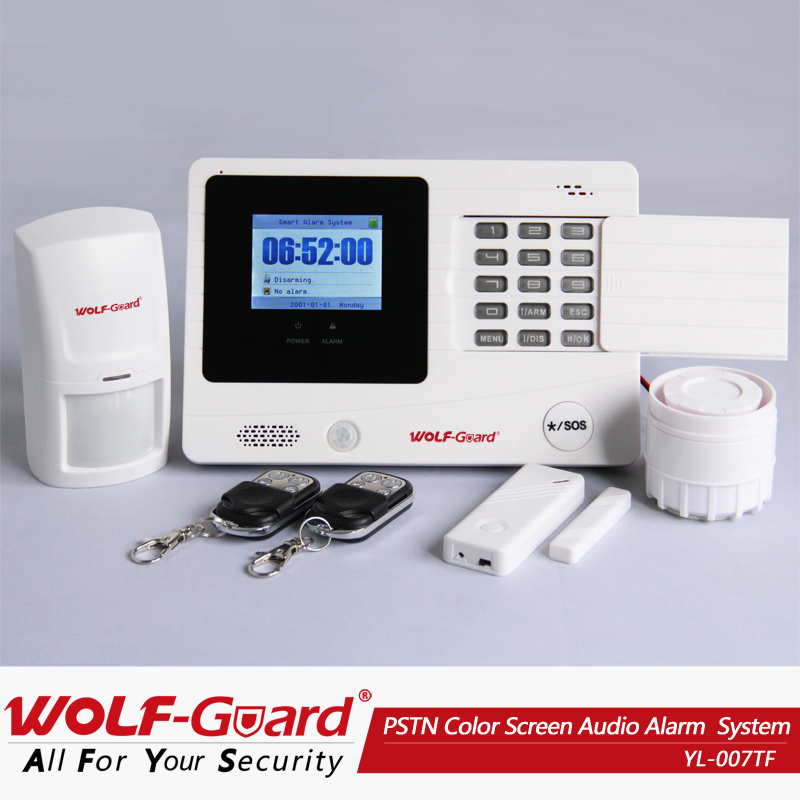

Basic Kit contains:
- Alarm host (control unit) * 1 PC.
- Wireless PIR detector * 1 PC.
- Wireless door (gap) sensor * 1 PC.
- Remote controller * 2 PCS.
- Antenna * 1PC.
- Mini wired siren 110dB/0.3m * 1 PC.
- Power adapter * 1PC.
