200ton Wireless Load Cell for Load Test Water Weight Bag
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
dynamometer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Testing Weight: |
200ton |
| Load Test Type: |
Link Type Load Cell |
| Display: |
Wireless Indicator |
| Measure Method: |
Automatic |
| Display Type: |
LED |
| Function: |
Weighing Scale |
| Accuracy: |
0.1g |
| Weighing: |
30-300kg |
| Application: |
Industrial Scales, Commercial Scale, Special Sca |
| Material: |
Alloy Steel |
Product Description

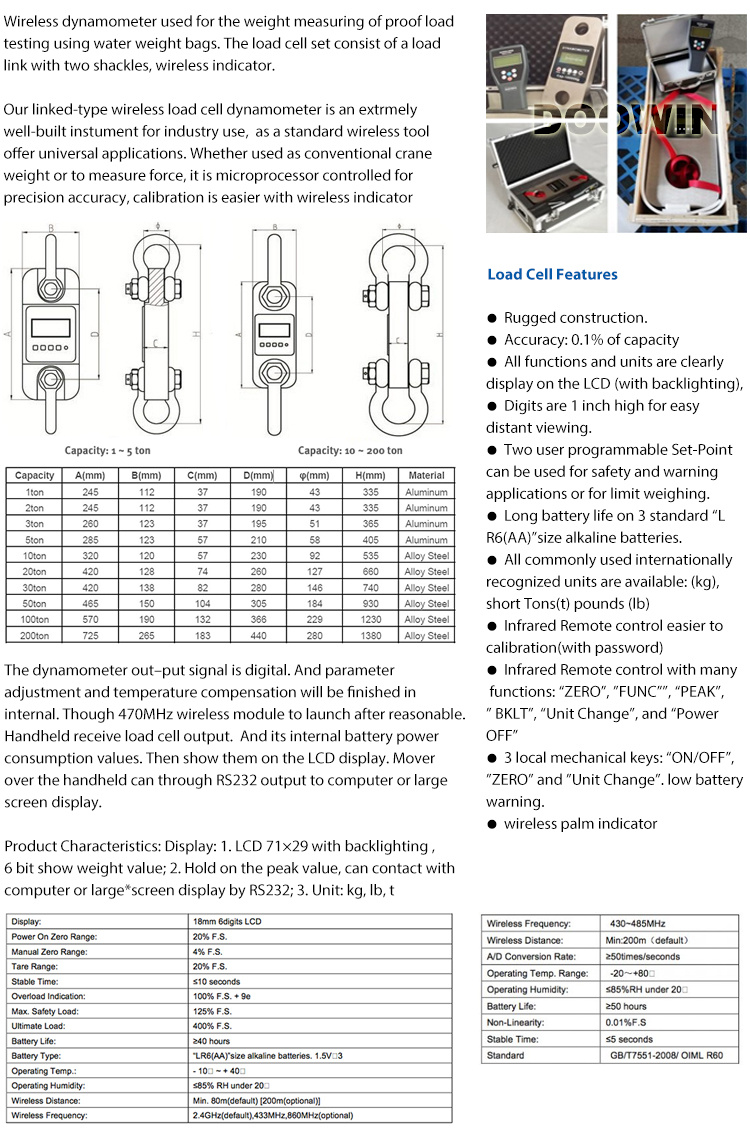

Wireless load cell used for the weight measuring of proof load testing using water weight bags. The wirless load cell set consist of a load link with two shackles, wireless readout, and high quality carry case.
Our wireless load cell is an extremely well-built instrument for industry use, as a standard wireless load testing tool offer universal applications, Whether used as conventional crane weight or to measure force, it is microprocessor controlled for precision accuracy, calibration is easier with wireless indicator.Wireless Load Cell Features:1.Rugged construction.2. Accuracy: 0.05% of capacity3.All fuctions and units are clearly display on the LCD (with backlighting),4.Digits are 1 inch high for easy distant viewing.5.Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.6. Long battery life on 3 standard "LR6(AA)"size alkaline batteries.7. All commonly used internationally recognized units are available:kg/t/lb/kN8. Infrared Remote control easier to calibration(with password) 9. Infrared Remote control with many fuctions:"ZERO", "TARE","CLEAR", "PEAK","ACCUMULATE","HOLD","Unit Change","Voltage Check"and "Power OFF" 4 local mechanical keys:"ON/OFF","ZERO","PEAK" and "Unit Change".10. low battery warnning.11.RF wireless palm indicator
Wireless Load Cell Parameter:
1.Body Display 25mm (1") 5digits LCD with backlight
2.Indicator Display 25mm (1") 5digits LCD with backlight
3.Power on zero range 20% F.S.
4.Manual Zero Range 4% F.S.
5.Tare Range 20% F.S.
6.Stable Time ≤5 seconds
7.Overload Indication 100% F.S. + 9e
8.Max. Safety Load 125% F.S.
9.Ultimate Load 400% F.S.
10.Battery Life ≥50 hours
11.Body Battery "LR6(AA)"size alkaline batteries.1.5Vx3
12.Indicator Battery "LR6(AA)"size alkaline batteries. 1.5Vx4
13.Operating Temp. - 20°C ~ + 50°C
14.Operating Humidity ≤85% RH under 20°C
Qingdao Doowin Rubber and Plastic Co., Ltd. is a leading professional manufacturer of underwater lifting bags, pipeline buoyancy bags, air lift bags, parachute air lift bags, totally enclosed air lift bags, water filled proof load test bags, lifeboat test water bags, davit test weight bags, platform proof test water bags, marine salvage airbags, pontoons, marker offshore buoys, inflatable pneumatic fenders, liquid storage bladder tanks, and other products made of heavy duty PVC or TPU coating fabric.
DOOWIN underwater air lift bags include parachute type lifting bags and totally enclosed type lifting bags. The parachute type lifting bags has open bottom type air lift bags and enclosed type air lift bags. The sealed type lifting bags include cylindrical shape enclosed air lift bags, pillow type air lift bags, elongated air lift bags, individual buoyancy bags, vertical mono buoyancy units, and twin inflatable buoyancy units. These air lifting bags can be used for the pipeline laying work too as inflatable buoyancy units. The buoyancy capacity of our air lift bags is from 50kg to 50ton.
DOOWIN proof load test water bags include crane test water weight bags, low headroom load test water bags, platform proof load test bags, lifeboat test weight bags, gangway test waterload bags. The crane load water weight testing bags capacity is from 1ton to 100ton. The lifeboat water weight bags have 100kg, 375kg, 400kg, 600kg. All proof load test water weight bags are supplied with its accessories, ready for use. The wireless load cell will be supplied upon request.
DOOWIN liquid containment includes pillow type water tank, bulk storage pillow tank, fuel bladder, liquid transport bladder, conservator bladders and other special design flexible tank bladders.
DOOWIN also make the lower pressure inflatable PVC fenders used for the small boats and yachts. Marker buoys used for the sailing racing. DOOWIN inflatable pipe plugs are flow stoppers for temporary close off or seal an opening. Our inflatable pipe plug/stoppers are very suitable for use in pipeline, ducts and tunnels with construction, inspection, repairs, cleaning, and repair.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for underwater salvage, and the proof load testing of cranes, davits, lifeboats, hoist, ramps & lifts, passenger gangways, platforms and bridges. With a good reputation of quality, DOOWIN is considered as the first choice of many key industry suppliers, contractors and end-users.
DOOWIN commits to high quality products with well-equipped testing equipment and strong technical force. DOOWIN's products passed rigorous ISO9001: 2008 Quality Management System. All underwater air lift bags are manufactured in line with IMCA D016 Rev3 Standard. All of our products are BV, SGS, and CCS certified.
