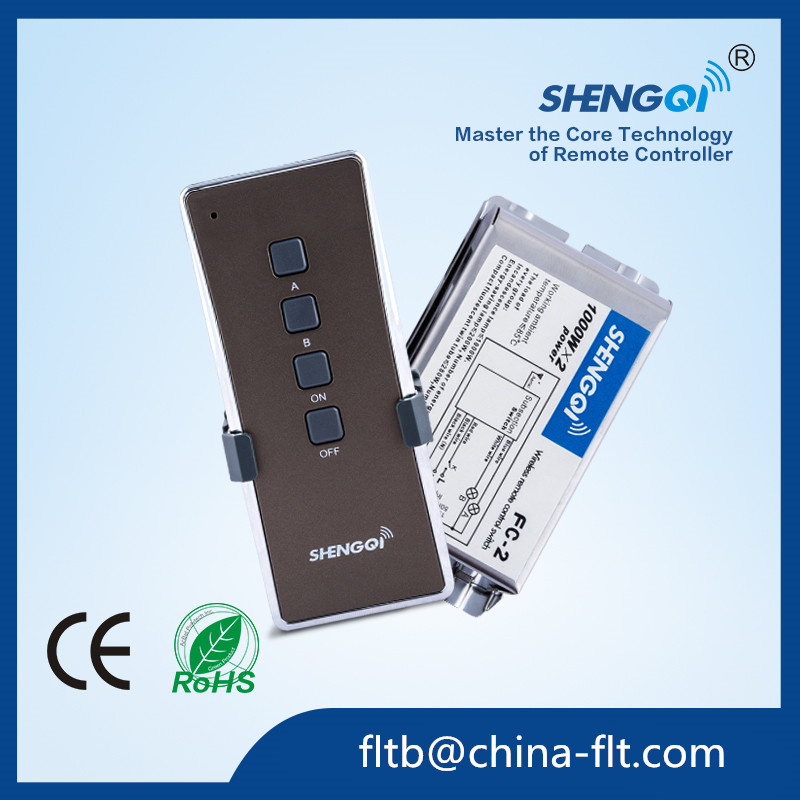

2-Group Remote Light Control Switch for CFL & Regular Lights

Prod Model:	FC-2
Type Of Battery:	23A 12V
Transmission Way:	RF (433.92MHz)
Export Market:	Global
Sale Point:	Remote Control Switch
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Voltage:	12V
Battery Type:	Button Battery
Transmission Distance:	<30m
Material:	ABS & PP Plastic

Product Description

Product Overview
FC-2
The remote control switch allows you to control light levels without ever having to leave your seat. It features 2 group control lights and includes a full-range light dimmer for maximum flexibility and comfort. It is an ideal replacement for a wall switch. This unit can be used hand-held or wall-mounted with a convenient wall bracket(included). This remote control features wireless operated from a distance of up to 30 m.

Function instruction of wall switch:
Turn on first time: turn on the A group source
Turn on second time: turn on the B group source
Turn on third time: all on

Note: the time of power failure cannot exceed 3 seconds when performing the above operations by wall switch. Otherwise the program will automatically switch back to its original status.

Specifications
Dimensions

Transmitter H*W* D	110*45*15mm	Receiver H*W* D	90*44*22mm
Blister dimension	20*14*3.3cm	Carton dimension	67*39*15.5cm


Details

Module number	FC-2	Wired or wireless	Wireless
Working environment	-20~85ºC	Number  of channel	2
Learning code	Yes	Waterproof	No



Load of each group:
Incandescent lamp≤1000W  192V~240V(50Hz~60Hz)
Incandescent lamp≤ 500W  110V~130V(50/60Hz)
Energy saving lamp≤ 200w (≤6pcs) 192V~240V(50Hz~60Hz)
Energy saving lamp≤ 100w (≤6pcs) 110V~130V(50/60Hz)


H tube≤280W (≤5pcs)  192V~240V(50Hz~60Hz)
H tube≤140W (≤5pcs)   110V~130V(50/60Hz)

Note:  please strictly follow instructions on the label to connect relevant components, otherwise remote control switch life will be influenced directly or the switch will fail to function.


Range of application
This kind of wall control is widely used for switch of energy saving lamp, incandescent lamp, fluorescent lamp, quartz lamp, and LED lights in hotel, shopping mall, house, etc. they are also can be used for different appliances according to their power.
Warm tips:
When the transmitter is unable to remotely control the receiver, please check whether the batteries are in good contact or they are fixed properly or they run out of use.
When the transmitter is unable to remotely control the receiver, please check whether the other remote controllers around may cause interference with each other or the keys on the transmitter are pressed down.
Please use this product under applicable voltage. Too low voltage will lead to failure of the remote controller to work. (please refer to the product label for the voltage range and related parameters.)
Please take out the batteries from the transmitter when it is not used for a long time.
Advantage
1.  Specialized in remote control
2.  Own factory, competitive price
3.  OEM and ODM welcome
4.  Check quality strictly and respond customers' feedback in time
5.  Every step should be strictly checked by QC
6.  Each product will be checked & cleaned before packing


Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL,LCL; Airport/ Sea Port receiving;
3. Customers specify  freight forwarders or negotiable shipping methods!
4. Delivery Time: 2-5 days for samples order; 15-35 days for mass order.

Payment:
1.  L/C, T/T, Western Union; 30% deposits; 70% balance before delivery.

FAQ:
-Q1:Would it be possible to customize the remote controller and the packaging with our logos? How much would it cost?
- A1Yes, it is possible, we can talk further if you have some good ideas, of course we can offer you a discount and the budget according to your quantity.
-Q2: Have you had sample available to send me? If so, Can you send me to my company directly? What would be the final cost of that? How is the procedure and the final cost of the sample?
-A2:Yes, we can send you one or more directly in a week, just let me know the correct address and zip code, we can help you check all fees, but we will charge sample fee and we can refund you if you can order more.
-Q3: Are you a trading company or manufacture?
-A3: As one of the oldest manufactures of remote controllers, we are now taking the leading position of remote control industry in mainland China. We have 150 employees with more than 8 engineers and 5 production lines.
-Q4: Can I buy a sample for testing?
-A4: Yes, we can supply you with a sample, because all of our samples are stocked. We can supply you with the sample within several working days after we get your payment for the sample.
-Q5: Can I visit your factory?
-A5: We warmly welcome you come to visit us at Foshan city, Guangdong province. You can take the airplane to Guangzhou Baiyun airport, then take the underground to the GUANGZHOU NAN high-speed railway about 30 minutes.  We can pick you up at the SHUNDE railway station. If you fly to Foshan directly, we can pick you up at the airport.
