Prod Model: |
gytc8s |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
Gytc8s Fiber Optic Cable |
Fiber Count: |
2-288 Core |
Brand Name Of Fiber: |
Corning, Yofc, Draka, Fujikura...as Your Requiremen |
Loose Tube Material& Filling Material: |
PBT&Jerry |
Structure Section: |
"8" Figure Cross Section |
Color Of Loose Tube: |
Orange, Green, Brown, Red etc |
Central Strength Member: |
Reinforced Messenger Wire |
Strength Material: |
Corrugated Steel Tape |
Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
Installation Style: |
Self-Support Aerial |
Application: |
Communication |
Certification: |
Reach, Tlc, etc |
Sheath Material: |
MDPE / HDPE / LSZH PE |
Core: |
2-288 Core |
Allowed Lateral Pressure: |
Long Term:1000n; Short Term:2000n |
Type: |
Single-Mode or Multimode Fiber |
Brand: |
Tw-Scie or OEM |
Connection Structure: |
Optical Fiber Cable |
Product Description

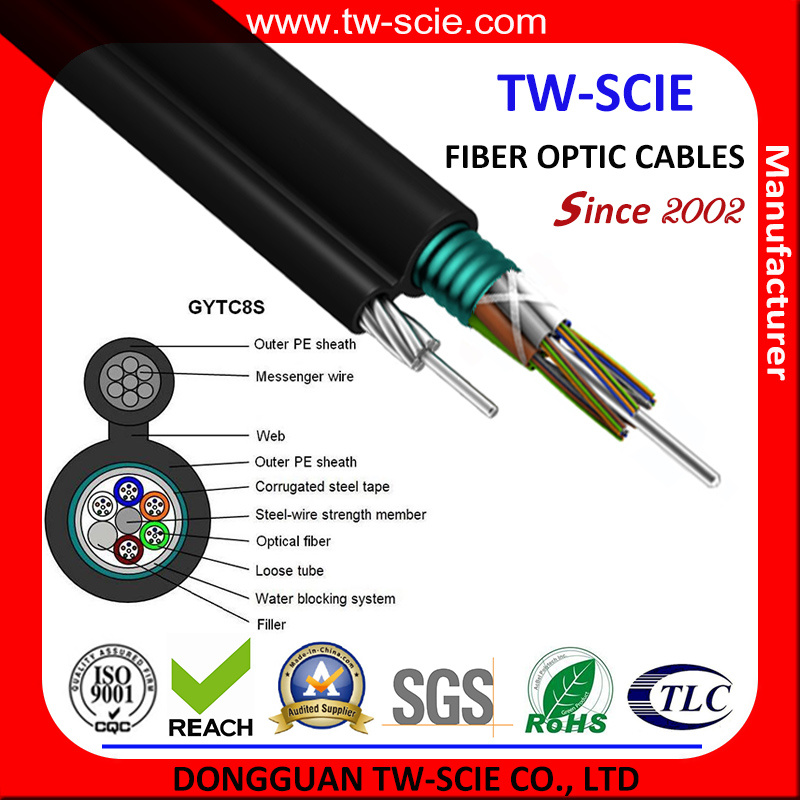

Figure 8 Self-support Single Mode Fiber Optic Cable Details:
Structure &Properties:
1. Up to 288 fibers with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
Technical Date:
Technical data: |
Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min. bend radius | Max. Running tension (N) | Safe running tension (N) | Min. Breaking tension (N) | Max. crush loading (N/100mm) |
Static | Dynamic | Short term | Long term |
2-30 | 1× 7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 10times cable diameter | 20times cable diameter | 7000 | 3500 | 15550 | 2000 | 1000 |
32-36 | 10.3 | 19.3 | 230 |
38-60 | 10.7 | 19.7 | 230 |
62-72 | 11.3 | 20.3 | 255 |
74-96 | 12.9 | 21.9 | 290 |
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fiber cables, we can not only offer you cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
![](/proimages/44f3j00QEIaJWgsJNoG/2-core-single-mode-fiber-optic-cable-gytc8s.jpg)
![](/proimages/44f3j00aEITmorlsFbf/2-core-single-mode-fiber-optic-cable-gytc8s.jpg)
![](/proimages/44f3j00EtDQwerhOOcU/2-core-single-mode-fiber-optic-cable-gytc8s.jpg)
![](/proimages/44f3j00aTDtdsuCYOcU/2-core-single-mode-fiber-optic-cable-gytc8s.jpg)
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
