| Prod Model: |
TL1223 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
2.3ah |
| Hour Rate: |
20 |
| Size: |
178(L)*34(W)*60(H)Mm |
| Weight: |
0.95kg |
| Color: |
Black / White |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
14.4~15V |
| Charge Voltage (Float): |
13.5~13.8V |
| Designed Lifef: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Power Toy |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

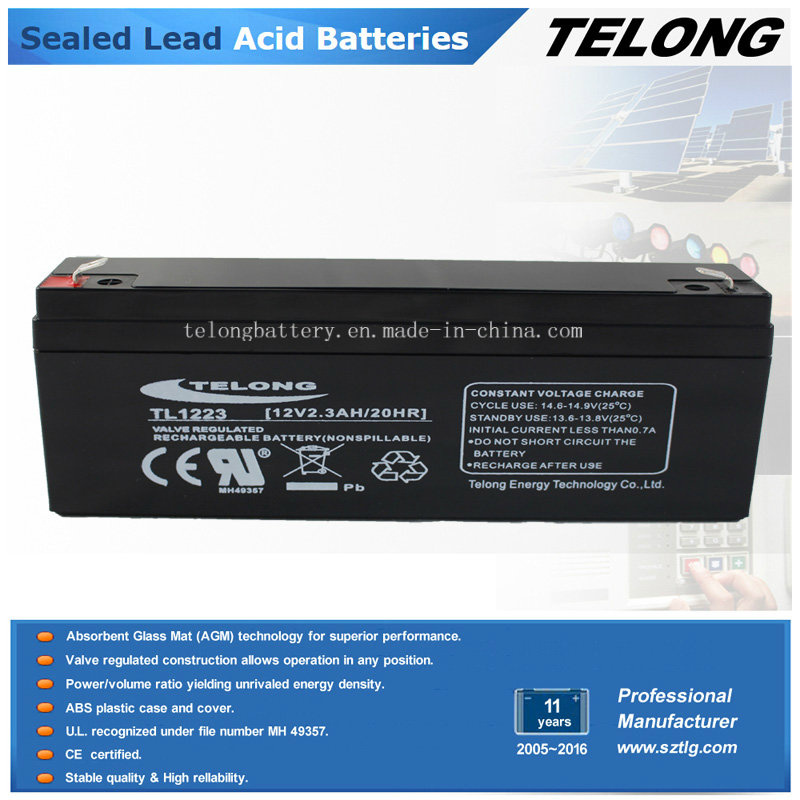

TELONG 12V2.3Ah rechargeable valve regulated lead acid battery is a maintenance-free storage battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The battery is sold to the customers from all over the world and has received good reputation from our partners.
BATTERY CONSTRUCTION
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
| |
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION
| Nominal Voltage | 12V |
| Rated capacity (20 hour rate) | 2.3 Ah |
| Dimension | Length | 178mm (6.94 inches) |
| Width | 34mm (1.33 inches) |
| Height | 60mm (2.34inches) |
| Weight Approx | 0.95Kg(2.10Ibs) |
Capacity
25'C (77'C) | 20 hour rate(0.115A ) | 2.30AH |
| 10 hour rate(0.214A ) | 2.14AH |
| 1 hour rate(1.4A ) | 1.40 AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 90 milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
Charge
(Constant Voltage) | Initial Charging Current less than 0.69 A |
| Voltage 14.4-15.0V |
| Voltage 13.5-13.8V |
APPLICATIONS
Remote Switching / Control equipments
Communication systems / Portable Lights
Power tools Electric toys
Alarm systems Emergency systems
Medical equipments
Uninterruptible power supplies (UPS) and stand-by power for computers
| Model | Nominal
Voltage
(V) | Nominal
Capacity
(Ah) | Size | NW |
| L | W | H |
| mm | mm | mm | kg |
| TL1212 | 12 | 1.2 | 98 | 45 | 56 | 0.55 |
| TL1222 | 12 | 2.2 | 70 | 47 | 100 | 0.74 |
| 1223 | 12 | 2.3 | 178 | 34 | 60 | 0.95 |
| TL1223 | 12 | 2.6 | 70 | 47 | 100 | 0.84 |
| TL1226 | 12 | 3 | 90 | 70 | 100 | 1.25 |
| TL1232 | 12 | 3.2 | 135 | 67 | 60 | 1.35 |
| TL1240 | 12 | 4 | 90 | 70 | 100 | 1.3 |
| TL1245 | 12 | 4.5 | 90 | 70 | 100 | 1.35 |
| TL1255 | 12 | 5.5 | 90 | 70 | 100 | 1.5 |
| TL1260 | 12 | 6 | 151 | 50 | 95 | 1.6 |
| TL1250 | 12 | 5 | 151 | 65 | 95 | 1.8 |
| TL1270 | 12 | 7 | 151 | 65 | 95 | 2 |
| TL1280 | 12 | 8 | 151 | 65 | 95 | 2.25 |
| TL1290 | 12 | 9 | 151 | 98 | 95 | 3 |
| TL12100 | 12 | 10 | 151 | 98 | 95 | 3.05 |
| TL12120 | 12 | 12 | 151 | 98 | 95 | 3.4 |
| TL12140 | 12 | 14 | 151 | 98 | 95 | 4 |
| TL12150 | 12 | 15 | 181 | 76 | 168 | 4.6 |
| TL12170 | 12 | 17 | 181 | 76 | 168 | 4.9 |
| TL12180 | 12 | 18 | 181 | 76 | 168 | 5.3 |
| TL12190 | 12 | 19 | 181 | 76 | 168 | 5.7 |
| TL12200 | 12 | 20 | 181 | 76 | 168 | 5.9 |
| TL12240 | 12 | 24 | 176 | 166 | 125 | 8 |
| TL12280 | 12 | 28 | 176 | 166 | 125 | 8.6 |
| TL12330 | 12 | 33 | 196 | 133 | 172 | 10.5 |
| TL12380 | 12 | 38 | 196 | 165 | 175 | 13 |
| TL12450 | 12 | 45 | 196 | 165 | 175 | 15 |
| TL12550 | 12 | 55 | 230 | 138 | 208 | 15.5 |
| TL12600 | 12 | 60 | 348 | 168 | 178 | 18.5 |
| TL12650 | 12 | 65 | 348 | 168 | 178 | 20.5 |
| TL12800 | 12 | 80 | 348 | 168 | 178 | 23 |
| TL12900 | 12 | 90 | 307 | 170 | 208 | 26 |
| TL121000 | 12 | 100 | 328 | 171 | 214 | 30 |
| TL121200A | 12 | 120 | 328 | 171 | 214 | 31.5 |
| TL121200B | 12 | 120 | 409 | 177 | 229 | 35 |
| TL121500 | 12 | 150 | 483 | 170 | 240 | 43 |
| TL122000 | 12 | 200 | 522 | 240 | 219 | 60 |
| TL122200 | 12 | 220 | 522 | 240 | 219 | 65 |
| TL122500 | 12 | 250 | 520 | 268 | 220 | 74 |
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet
Pcs/ctn: 10pcs/ctn
Ctn size:190*365*70mm
GW/NW: 9.7kg/9.5kg |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 25-35 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
| 7 | The price of the battery is based on Lead Price of RMB12500-13000/ton. The above price
would be revised upwards or downwards byaround 2% with every increase or decrease
of RMB500/Ton in the lead price at SMM.(Shanghai Nonferrous Metal Market).Please visit
http://www.smm.cn for the latest price at SMM. |
