| Prod Model: |
GYTY53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Outer Sheath Material: |
PE |
| Filler: |
Filling Compound |
| Metallic Strengthen Member: |
Steel Wire |
| Brand Name: |
Tw-Scie Fiber Optic Cable or as Required |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
Reach |
| Sheath Material: |
PE |
Product Description
12 Core Single Mode Fiber Optic Cable GYTY53 Outdoor Fiber Optic CableApplication:
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Product Information:
Product name | GYTA53 42 cores underground fiber optic cable |

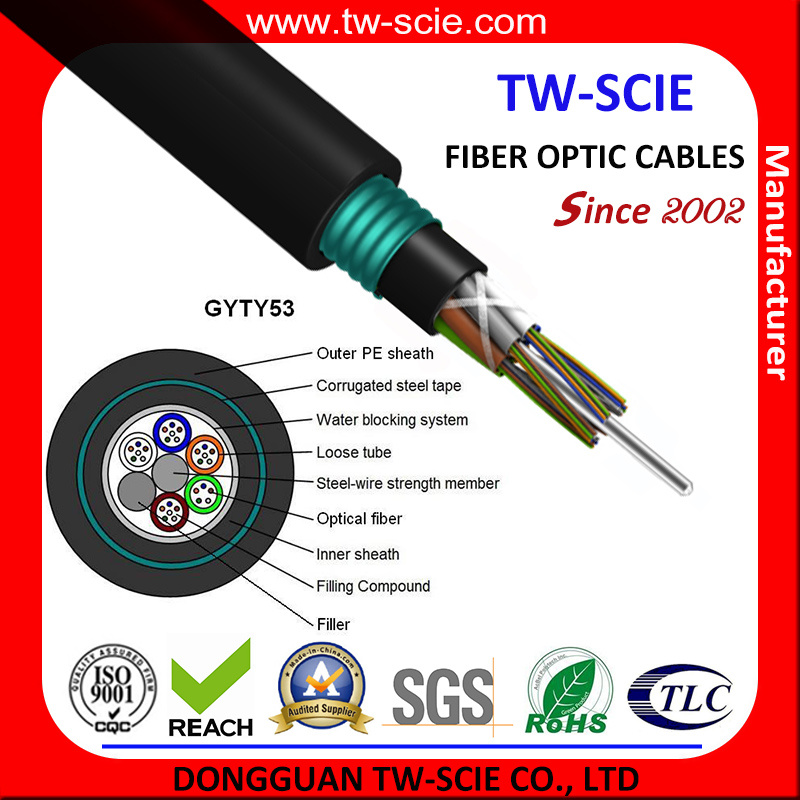

Introduction | The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress,then,the cable core is completed with a PE sheath .After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE outer sheath. |
Characteristics | Good mechanical and temperature performance |
High strength loose tube that is hydrolysis resistant |
Special tube filling compound ensure a critical protection of fiber |
Crush resistance and flexibility |
The following measures are taken to ensure the cable watertight: |
Loose tube filling compound |
100% cable core filling |
PSP enhancing moisture-proof |
APL moisture barrier |
Water-blocking material |
Steel wire used as the central strength member |
Application | Duct |
Aerial |
Direct burided |
Standards | Complies with standard YD/T 901-2009 as well as IEC 60794-1. |
Features:
1. Up to 288 fibers.
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.
| Technical data: |
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-24 | 13.3 | 210 | 12.5 times O.D. | 25 times O.D. | 3000 | 1000 | 3000 | 1000 |
| 26-36 | 13.6 | 220 |
| 38-60 | 14.1 | 225 |
| 62-72 | 14.6 | 255 |
| 74-96 | 16.2 | 305 |
| 98-120 | 17.7 | 350 |
| 122-144 | 19.1 | 395 |
| 146-216 | 19.6 | 420 |
| 218-240 | 22.8 | 530 |
| 242-288 | 25 | 620 |
