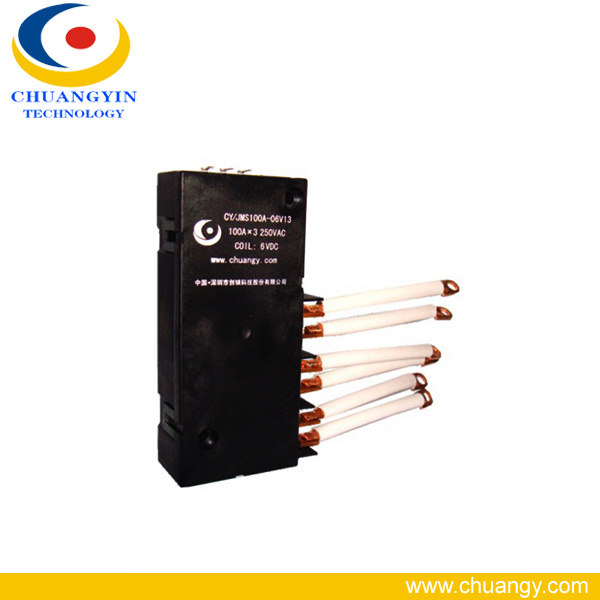

100A Three Phase Latching Relay
| Price: |
US $ 10/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
CY-JMS-12V13 |
| Max. Switching Voltage: |
250V AC |
| Max. Switching Current: |
80A |
| Contact Resistance: |
≤2mΩ |
| Max. Switching Power: |
20kVA |
| Ambient Temp.: |
-40ºC~+70ºC |
| Insulation Resistance: |
≥1000m&Omega |
| Coil Voltage: |
12V/18V/24V/48V/96V |
| Rated Voltage: |
6V/9V/12V/24V/48V |
| Number Of Coil: |
Single or Double |
| Terminal: |
Assembly with CT or /Shunt |
Product Description
- Character
Meet to IEC62055-31-2005-UC2 UC3According to RoHS requirementsLarge switching power with mini bodyBig strengthof magnetic latching power,anti-shock of vibration Pulse drive,economy of power consumption and no heat rising Permanent magnetic strength to keep stability,and save power consumption Small contact resistance ,and little self-consumption with reliable working - Application
Electronic energy meter Automatic meter reading system Lamp controller Complex switch Home appliance and automatic control equipment - Coil Specification
| Rated voltage | Action voltage (VDC) | Max coil voltage(V) | Coil resistance x(1±10%)Ω | Rated power |
| Single coil | Double coil |
| 6 | 4.8 | 12 | 16 | 8+8 | Single coil 2.25W
Double coil 4.5W |
| 9 | 7.2 | 18 | 36 | 18+18 |
| 12 | 9.6 | 24 | 64 | 32+32 |
| 24 | 19.2 | 48 | 256 | 128+128 |
| 48 | 38.4 | 96 | 1024 | 512+512 |
- Technical Specification
| Contact type | 1B(1A) | Insulation resistance | ≥1000MΩ(500VDC) |
| Contact material | AgSoO2 | Dielectric strength | Coil--contact | ≥4000VAC 1min |
| Contact--contact | ≥2500VAC 1min |
| Contact load (resistance) | 100A 250VAC | Action time | close | ≤20mS |
| open | ≤20mS |
| Contact resistance (mΩ) | ≤2mΩ | Action impulse duration | 50mS-240mS |
| Max switching voltage | 250VAC | Life (time) | Electrical life(ops) | 1x 104 (circle) |
| Mechanical life (ops) | 1x 106 (circle) |
| Max switching current | 100A | Max action frequency | 1200 ops/h |
| Max switching power | 25KVA | Vibration tolerance | 98m/s2 |
| Short time impact current | 3000A 10ms no sinter
6000A 10ms no explosion | Shock tolerance | 10-50Hz 1.0mm |
| Ambient temperature | -40ºC to +70ºC | Relative humidity | 90% RH 40ºC |
- Dimension
- Wiring Diagram
Remarks: The drawing does not show tolerance. It is subject to below range:≤1mm ±0.21-5mm ±0.3≥5mm ±0.4 The output terminal in above drawing is for customers'reference only. The dimension and connection way of output terminal can be customerized. Note:Please browse our website and download product catalogue for detailed information. SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD. ( CY Group )Certification: KEMA, ISO9001, UL, SGS, CE.( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China, Post code: 518057Tel: +86 0755-86000716/ 86007806Fax: +86 0755-86000614Web: www.chuangy.comArvin Q.Business Development ExecutiveMob: +86 13925284622
