Prod Model: |
XJY-PCB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Surface Finishing: |
Enig |
Soldermask: |
Green |
Silkscreen: |
White |
Min. Line Width: |
0.1mm |
Min. Hole Size: |
0.25mm |
Min. Line Spacing: |
0.1mm |
Board Thickness: |
1.6mm |
Copper Thickness: |
1oz |
Certificates: |
UL, RoHS, SGS, ISO9001 |
Shipping: |
DHL, UPS, TNT, FedEx, etc |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V0 |
Product Description
Welcome to our website!!!
we care your order even one piece
Shenzhen XJY Company is a professional pcb manufacturer has over 10 years experience,manufacturing 1 Layer to 20 Layer PCB for Electronic Products, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.

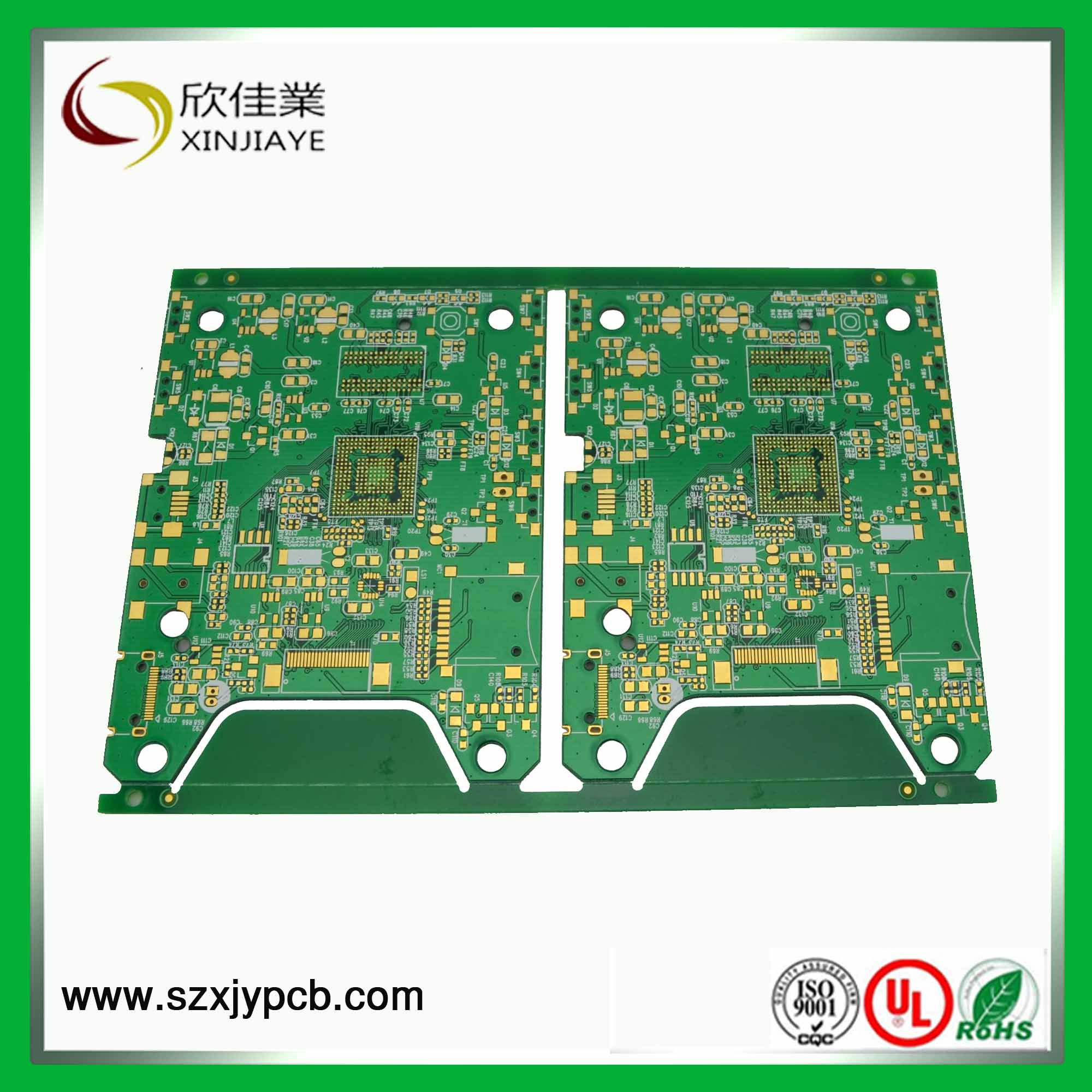

1 Layer to 20 Layer PCB for Electronic Products:
1.Board thickness: 1.6mm
2.Material: FR4
3.Surface treatment: OSP
4.Copper Thickness:1oz
Our PCB board manufacture and PCB assembly service:
1. No MOQ for PCB and PCBA
2. High standard pcb depends on IPC Class ll
3. 100% E-tested before shipping
4. RoHS, UL, ISO, SGS certificate

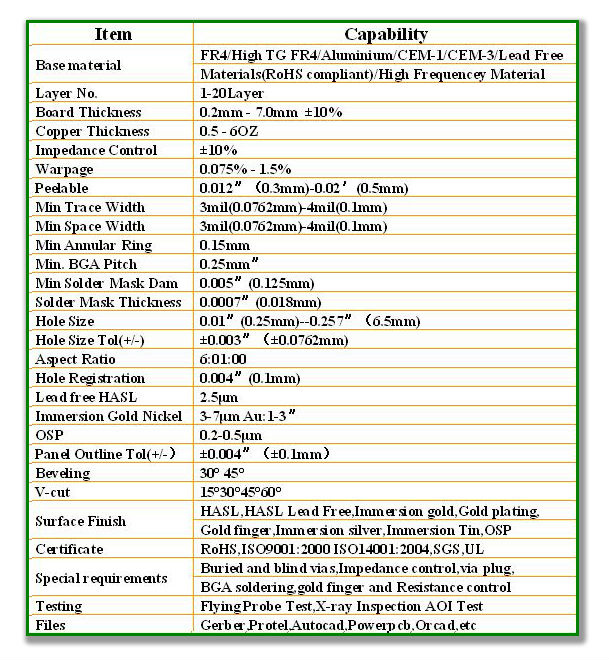

5. Factory production Capability of 20000 sqm/month Technical Capacity:
![](/proimages/44f3j00qEYQOfgrBtoz/1-layer-to-20-layer-pcb-for-electronic-products.jpg)
Testing Procedures For PCB Board:
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
* AOI (Automated Optical Inspection)
How to get a quote?
--- Pls send gerber file with these format: .PCB / .P-CAD / .DXP / .CAD / .Gerber
a) Base material: FR4/ AL/ FPC/ CEM-1/ CEM-3/ 94v0/ Rogers
b) Board thickness: 1.6mm-3.2mm/ 0.3mm-1.2mm
c) Copper thickness: Hoz/ 1oz/ 2oz/ 3oz/ 4oz, ect
d) Surface treatment: HASL/ ENIG/ LF-HAL/ Immersion Tin/ Immersion Sin/ OSP
e) color of solder mask and silkscreen: Green/White/Black/Red/Blue/Yellow
f) Quantity and board size
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / production: within 7 days
2) Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.
3) Component purchase: 2 days if all components is available in our domestic market.
PCB Assembly: samples: within 3 days / mass production: within 6 days
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.

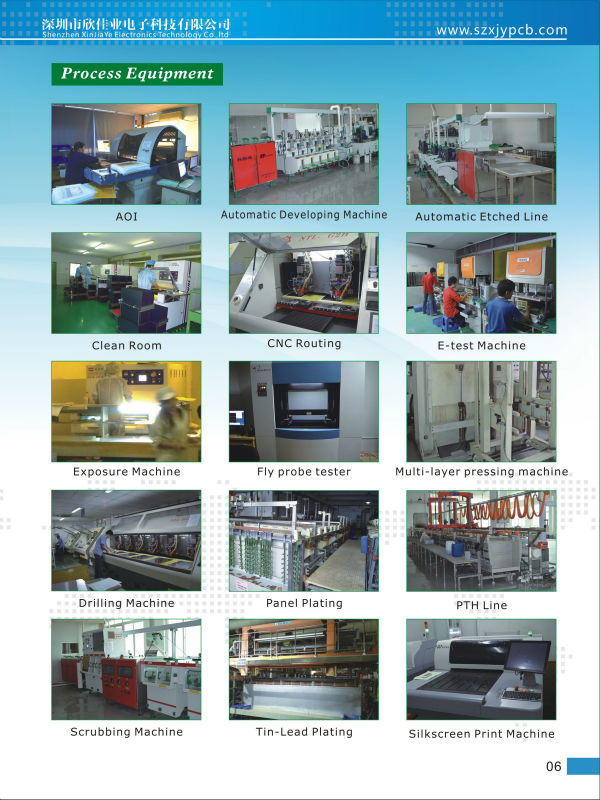

Factory Show:
![](/proimages/44f3j00BEMQVAGKOtzI/1-layer-to-20-layer-pcb-for-electronic-products.jpg)
![](/proimages/44f3j00KTCaiQfFRtuH/1-layer-to-20-layer-pcb-for-electronic-products.jpg)
We have over 10 years experiences with pcb.
If you send gerber file or pcb requirements, we will reply in 10 hours!
high efficiency & quick response & good English communication = Win-win!
Delivery Time | 1L | 2L | 4L | 6L | 8L |
quick turn | 1days | 1days | 3days | 5days |
|
<1 square meter | 4days | 5days | 7days | 9days | 11days |
<3 square meter | 6days | 7days | 9days | 11days | 13days |
<10 square meter | 8days | 10days | 12days |
|
|
<50 square meter | 15days | 18days | 25days |
|
|
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.

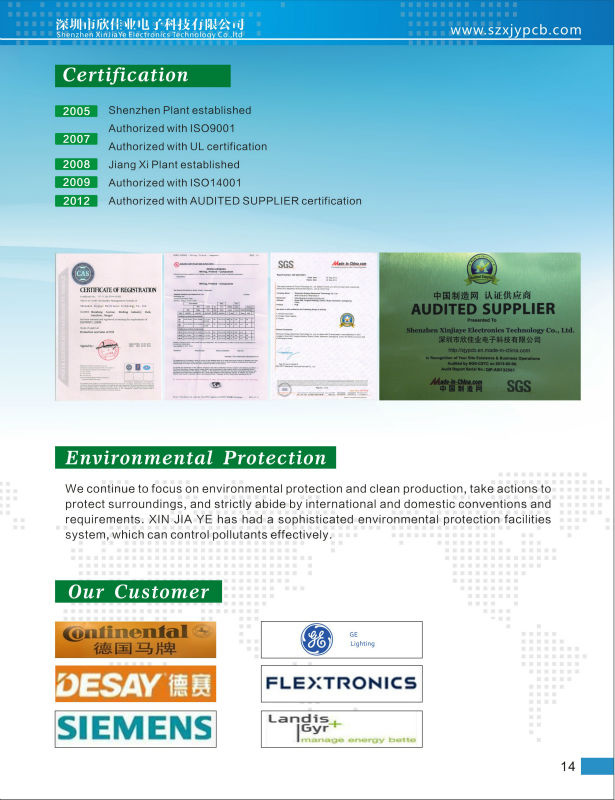

Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
