0.1 Class High Accuracy Current Transformer Used for Electricity Meter 1: 300 Ratio

Name: 0.1 Class High Accuracy Current Transformer Used for Electricity Meter 1: 300 Ratio
Brand: all-electronics-online.com
SKU: 818545055
Availability: InStock
Rating: 5 (121 reviews)

Price:	US $ 0.6-1.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LO-EM0003
Phase:	Single
Flame Retardant:	UL94V-0
Safety Standard:	IEC60044-1
Insulation Class:	Class B
Frequency:	50-60Hz
Production Process:	Plastic Case
Material:	Amorphous Core
Application:	Electricity

Product Description

Description

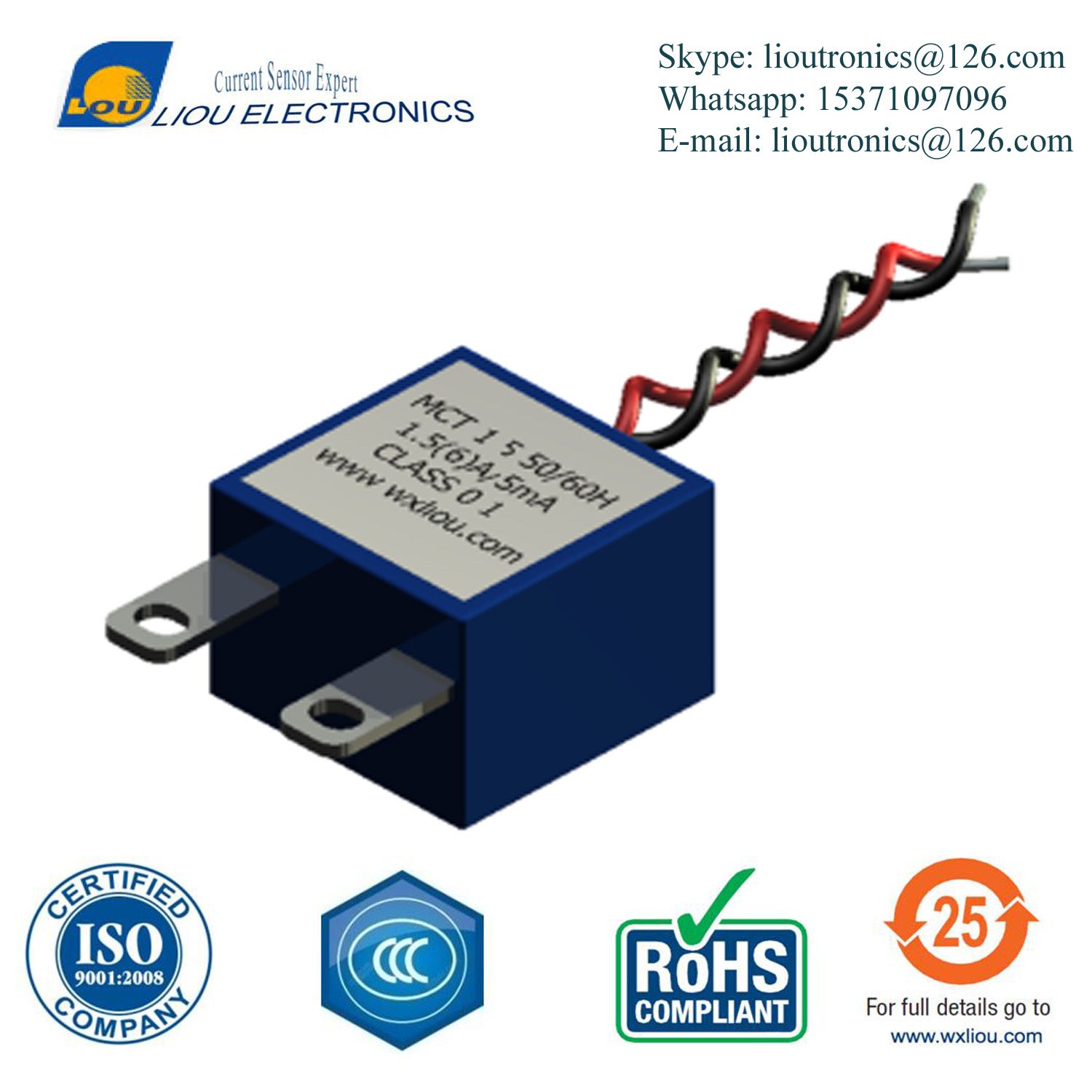

¨   50/60 Hz,Single Phase,AC Current Sensor
¨   Dynamic Range from 0.1 to 9Amps
¨   Meets IEC62053-21 class 1
¨   Meets IEC 60044-1 class 0.1 Phase error < 5'
¨   Immune to external AC magnetic field. Immune to DC current & DC magnetic field
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 4KV for 60s

Application
• Electricity meter
•   Recording
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

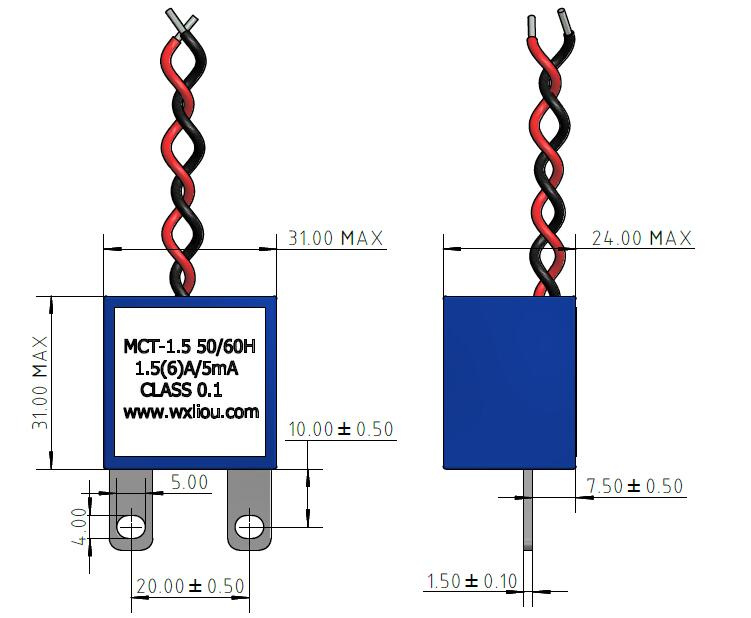

Mechnical specificaiton

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	R_S	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ration	Amps	mA	Amps	mA	Ohms		Ohms	(g)	(Hz)
LO-EM-0.1-1.5/5-2	1:300	1.5	5	9	30		0.1	≤20	20	50-60

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.

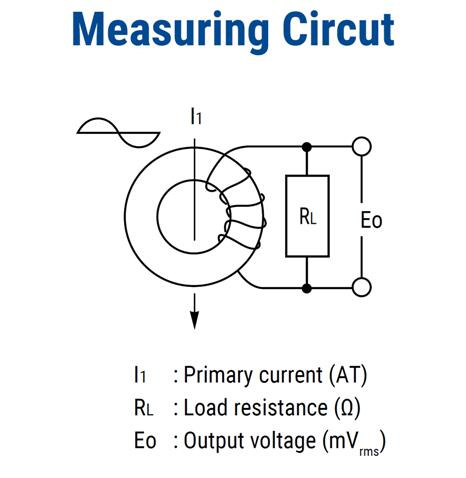

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation R_L=Vout*Nsec/Ipri

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40ºC to 85ºC
Storage temperature range	-40ºC to 125ºC
LEADS INFORMATION
UL1007 26AWG Black &White	Leads length:135±5mm
Stripped and tinned	5±2mm
